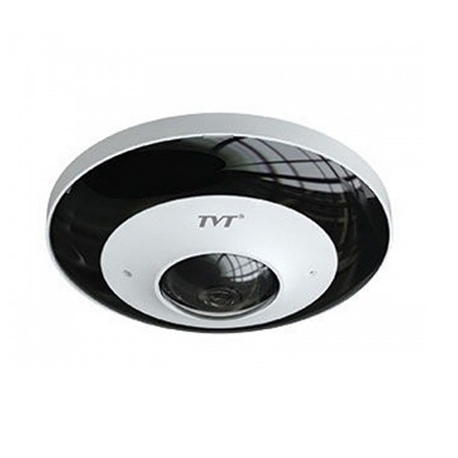

Ceiling camera TD-9568

Fisheye & Panorama Color Roof Camera 6.0 MP, D/N (ICR),
Sensor: 1/2.9” progressive scan CMOS.
Resolution: 6MP
Image speed: 6MP (2160×2160) at 25 fps
Electronic aperture: 1 s ~ 1 / 100000 s
Sensitivity: 0.068Lux @ F2.0(Color).
Lens: 1.1 mm
Network Protocol: IPv4/IPv6, HTTP, TCP/IP, UDP, UPnP, RTSP, NTP, DHCP, DNS, DDNS, FTP.
Interface protocol: ONVIF
Compression: H.265, H264, MJPEG triple stream
Recording to NVR, DVR, NVMS
It has the ability to set up Fisheye + panorama+3 PTZ, Fisheye + 4 PTZ
It has motion detection
Possibility of simultaneous connection of up to 11 users
180° viewing angle for ceiling mounting
Infrared ARRAY LEDs, maximum range 20~30 meters
It has 1 input and 1 output Alarm
It has 1 input and 1 audio output and a built-in microphone
Audio compression: G711A / U
It has a Video output (CVBS)
SD card recording capability (up to 256GB)
It has: BLC / HLC / DWDR /3DNR and integrated Web server
Operating Temperature: - 30 °C ~ 60 °C
Protection: Does not have any degree of protection.
H/Y and mobile Android, iPad and iPhone surveillance capability
Power supply: 12 VDC or PoE (IEEE802.3af)
Consumption: 10.5W (IR On)
Dimensions: Φ130m x 41mm.
Weight: 450 grams
Color: White.
Works with TD-YXH0206, TD-YZJ0409, TD-YZJ0813 mounts
