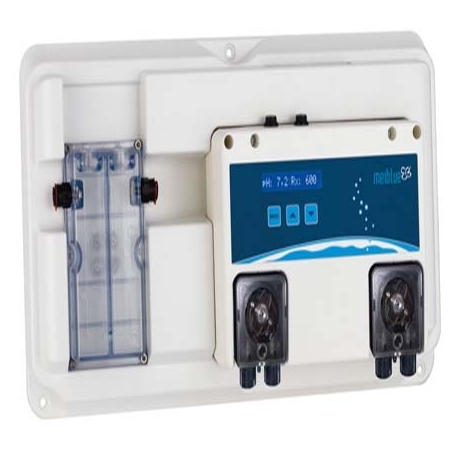

PH/Redox control system Basic Exact

Specifications:
• Measuring range:
- pH: 0 – 14
- Redox: 0 – 1000 mV

• Control characteristics:
- interchangeable pH + or pH-

• Protectors:
- start-up time delay: 8 minutes
- limitation of dosing time: 0–240 minutes
- switch-off dosing pumps by empty chemical
tank (optional)

• Use:
- Intuition-based prompt menu with one-line
LC-display, illuminated 3 buttons – easy and
user-friendly

• Dosing pump:
- Prominent peristaltic pump max. 2,4 l/h, 2 bar,
extremely silent and resistant (spring-supported
rollers)

• Probes:
- Prominent glass probes

Scope of delivery
• Aquacontrol Dos pH/Rx BASIC EXACT
measuring, control and dosing unit

• pH and Rx probe with cable and SN6 plug

• Buffer solutions pH 4 and pH 7 and Rx 475 mV

• Probe housing (flow cell), closing valves, 10m
test water tube with accessories

• Peristaltic pump 2,4 l/h, 2 bar max. for pH,
injection valve (VITON) and dosage tube PTFE

• Suction filters for chemical tank extraction
