The Dual Link module provides automatic pH (acidic dose) regulation and regulation of chlorine production by the TRi Expert chlorinator. For balanced water and optimal disinfection.

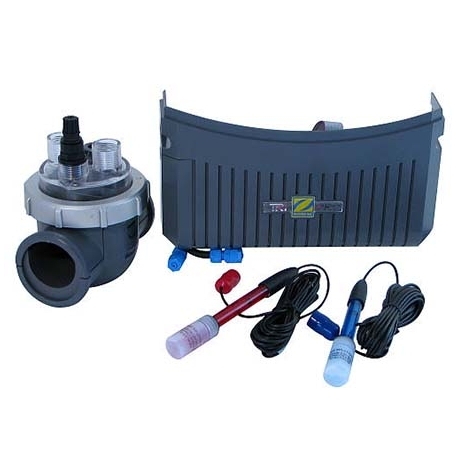

Automatic regulator ph-cl Dual link Zodiac
€1,465.50
€1,025.85
Save 30%
VAT included
The Dual Link module provides automatic pH (acidic dose) regulation and regulation of chlorine production by the TRi Expert chlorinator. For balanced water and optimal disinfection.
Πολιτική ασφαλείας
(επεξεργασία με το Πρόσθετο Διαβεβαίωση Πελατών)
Πολιτική παράδοσης
(επεξεργασία με το Πρόσθετο Διαβεβαίωση Πελατών)
Πολιτική επιστροφών
(επεξεργασία με το Πρόσθετο Διαβεβαίωση Πελατών)
Description :
User interface: Interface of the unit (backlit LCD screen with 4 lines)
Calibration: Semi-automatic at 1 point pH 7.5 & ACL 700 mV (buffer solutions supplied)
Setpoints: Factory settings: pH = 7.2 ACL = 4
Safety features: Choice of pool volume, overdosing safety device, choice of chlorination type
Position of sensor(s): Vertical, on the POD (included)
Technical specifications
| Sensor type (pH & ACL) | Combined process sensor, double junction and double porous, ABS body with ½" thread |
| Scale range | 100 - 1000 mV |
| Measurement accuracy | 10 mV |
| Sensor tolerance | 0-60°C, water speed ≤ 2 m/s |
| Against maximum pressure (injection point) | 1.5 bar |
| Peristaltic pump flow rate (pH) | 1.8 L/hr |
| Module dimensions (W x H x D | 28.5 x 15.5 x 7.5 cm |
| Power supply 50 Hz | TBT (connected to the chlorinator) |
General
Guarantee: 2 years
Accessories included in the pack:
- pH sensor
- ACL sensor
- buffer solution pH 7.5
- Redox buffer solution700 mV
- hole saw
- pipe kit
Optional accessories:
- Buffer solution pH 7.5
- ACL buffer solution 700 mV
- Winter cover
- Winter cap
- BNC 3 m extension cord
- Anode earth kit
Associated products:
TRi Expert
01.016.018.001
