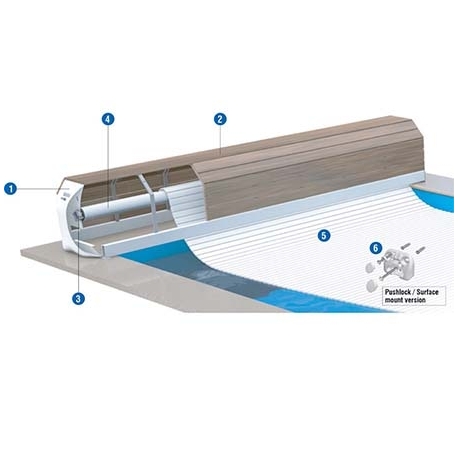

Above ground cover Rollover Opale AS

Specifications:

STRUCTURE
- 316 L stainless steel arches.
- White lacquered aluminium end flanges.
- ABS-PMMA heat-formed side finish.

CASING
- White PVC or IPE wood slats.
- 2 x 2 slats at 45 degrees easy to remove
to access the slats.

MOTORISATION
Tubular electric motor
- Adjustable mechanical limit switches.
- The motor with winch can be used to open
and close your automatic cover in case of a
power failure. This is a back-up operation that
operates using a manual handle: the automatic
cover can be opened or closed by the user.
Electric control box
- 200 VA transformer.
- Magnetic-thermal circuit breaker protection.

Automatic stop
- A circuit board is used
to stop the opening if an
abnormal strain is detected
on the slats.

Wi-key or key switch.

20 MICRONS ANODISED TUBE

POLYCARBONATE SLATS
- Opaque PVC or solar polycarbonate slats.
(See page 420)

LOCKING KITS
- Pushlock, Quicklock or Straplocking.
(See page 421)

Οptional:
 Winter shield: Ivernea winter shield to protect
from UV rays and dirt.
