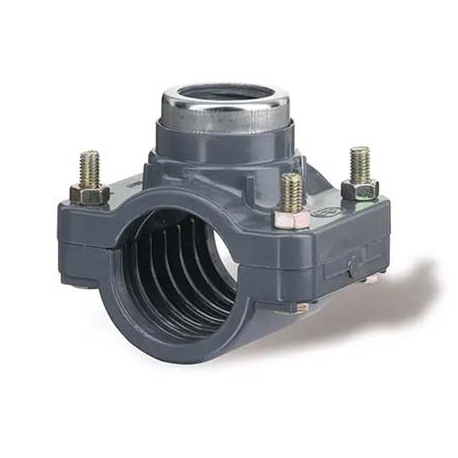

UIFV – Clamp saddle 16 ΑΤΜ with four bolts
Clamp saddle UIFV Fip
€12.50
€10.00
Save 20%
VAT included
UIFV – Clamp saddle 16 ΑΤΜ with four bolts
Πολιτική ασφαλείας
(επεξεργασία με το Πρόσθετο Διαβεβαίωση Πελατών)
Πολιτική παράδοσης
(επεξεργασία με το Πρόσθετο Διαβεβαίωση Πελατών)
Πολιτική επιστροφών
(επεξεργασία με το Πρόσθετο Διαβεβαίωση Πελατών)
• Range from d 32 a to d 225 mm, threaded branches from G 1/2” to G 3”
• Maximum working pressure PFA: 16 bar at 20° C
• Upper and bottom part molded in PVC-U
• Sealing by special gasket in NBR
• Metal reinforcing ring (Stainless steel AISI 430) on threaded branches
• Easy to install
• Installation by screwing 4 bolts in zinc plated steel (Stainless steel on
demand)
505 - Clamp saddle in PP
• Range from d.20 to d. 315mm, threaded branches from R 1/2” to R 4”
• Maximum working pressure (PFA):
10 bar up to dxR 160x2”
6 bar up to dxR 200x4”
4 bar up to a dxR 315x4”
• Upper and bottom part in PP
• Gasket O-Ring in NBR
• Reinforcing ring in stainless steel AISI 430
• Installation by screwing 2/4/6 bolts in zinc plated steel according to the diameter (Stainless steel on demand)
01.018.481.000
