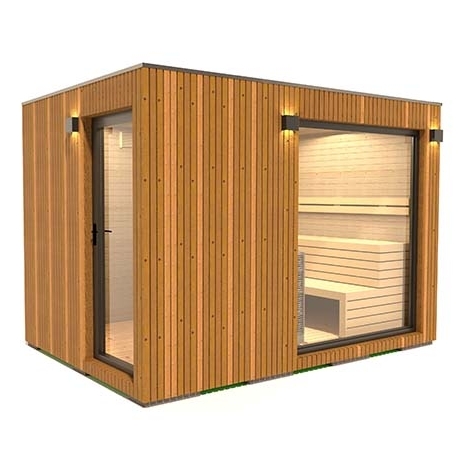

Outdoor sauna room Lars Supine

The Lars garden house has a sauna and a vestibule. The facade is made of a board with a rectangular profile and is protected with appropriate oil. It has a large glazing in the form of an aluminum window. The advantage of this sauna house is definitely the glass entrance door and the sauna. Double bench in the shape of the letter „L” will accommodate up to 9 people. The sauna, which is the most important element of the whole project, is made of Scandinavian spruce panelling, while the platform, benches and backrest are made of the highest quality aa linden wood. The basic equipment also consists of LED lighting in the form of the so-called mesh and 3 outdoor sconces.

WALL CONSTRUCTION „10CM”
ELEVATION FACADE BOARD SPRUCE RECTANGLE PROFILE, IMPREGNATE
GRATE UNDER THE FACADE mpregnated softwood, edgeband 25x50mm
WIND INSULATION Vapor-permeable membrane
CONSTRUCTION Planed dry lumber 30x100mm Mineral wool 10cm
VAPOR INSULATION Vapor insulation
FINISHING Spruce paneling boards


FLAT ROOF CONSTRUCTION „15CM”
ROOF COVERING PVC MEMBRANE
WIND INSULATION Vapor-permeable membrane
CONSTRUCTION Wood 50x150mm Mineral wool 15cm
INSTALLATION GRID Impregnated softwood, edgeband 25x50mm
VAPOR INSULATION Vapor insulation
FINISHING Gypsum board Spruce paneling boards


FLOOR CONSTRUCTION „10CM”
FINISHING Wooden floor
PLATING OSB board, thickness
VAPOR INSULATION  Vapor insulation
CONSTRUCTION Planed dry lumber 50x100mm Styrofoam floor 10cm
SUBSTRATE Steel Anti Rodent Mesh
WIND INSULATION Membrane



WINDOW AND DOOR JOINERY
WINDOW Tempered glass 190x210cm
SAUNA DOORS Tempered glass doors 70x190cm
ENTRACE DOORS Aluminium frame doors 90x210cm
